Electrical Wiring LED Belt Light 2 3 4 5 Pin T Shape Plastic Waterproof Connector
| Brand | HYFD |
| Application | LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on |
| Types | Waterproof plug/waterproof connectors/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug |
| Interface Type | AC/DC |
| Shape | T shape, round |
| Process | Stamping/welding/injection molding |
| IP Level | IP68 |
| Contact Material | Copper or PCB board |
| Joint Material | Nylon PA66 |
| Pin Number | 2 pins, 3 pins, 4 pins, 5 pins |
| Cable Length | As per required |
| Form | Socket, plug stamping or injection after welding |
| Rated Voltage | 300V |
| Rated Current | 10A |
| Breakdown Voltage | 1500V |
| Working Temperature | -40 ~ 105℃ |
| Wire Materials | PVC, rubber, as per customer requirements |
| Color | Black |
| Standard Item | Joint is made of NYLON, over-molded with VDE PVC cable, cable regular length is 25cm each side. We can design as per your requirements. |
| Max Cable Diameter | 8.0mm |
| Cable Length | It can be customized as per your requirements. |
FAQ
Q: What is the packing?
A: Well, we pack it in neutral cartons or as your requirements.
Q: Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the connectors as per your requirements or drawings and open new tooling for you.
Q: How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see if to believe, we believe you will be satisfied with our products.
Q: Do you have certification for your connectors?
A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certificates while some of them have TUV/UL certificates.
Q: Why choose us?
A: We are a factory focus on waterproof connectors for over 11years, we have:
1. 100% home made, competitive price and short lead time.
2. Strict quality control: we have IS09001, our connectors have CE/CQC/ROHS/IP67/IP68/TUV/UL certificates.
Product Tags:
|
|

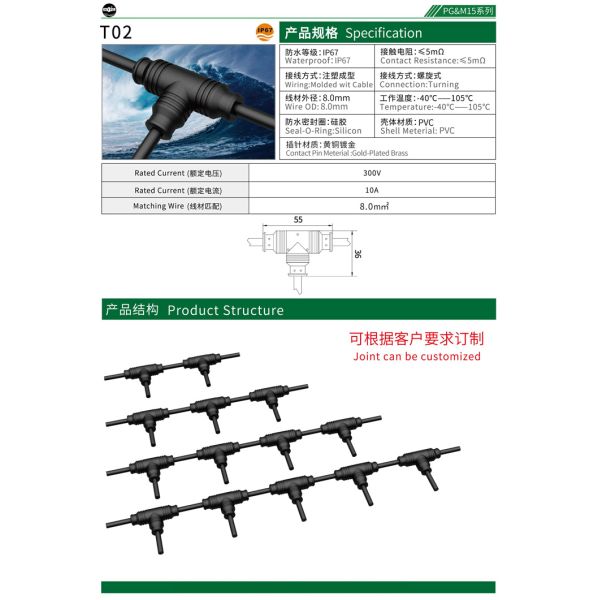

HYFD LED Belt Light 2 3 4 5 Pin 300V T Shaped Electrical Connector Images
|
